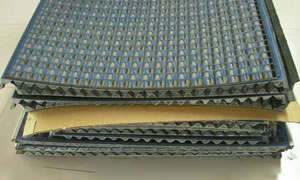

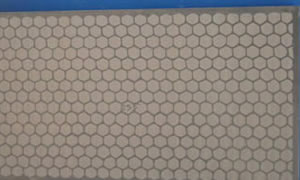

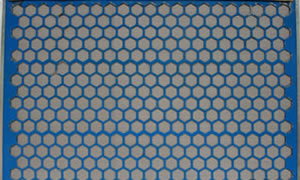

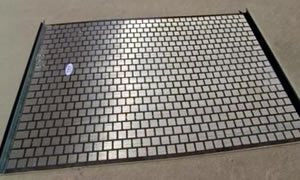

  • Hookstrip Flat Screens

    Hookstrip flat screens are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hookstrip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hookstrip flat screens with mesh sizes ranging from 12 to 275.

    Screen Model

    Pange of Mesh

    Dimension (Length x Width)

    Weight(Kg)

    HYP-1

    20-325

    903×1155mm

    5.6

    HYP-2

    20-325

    1212×1141mm

    9

    HYP-3

    20-325

    697×1050mm

    6

    HYP-4

    20-325

    697×1053mm

    4.2

    HYP-5

    20-325

    697×846mm

    4

    HYP-6

    20-325

    915×1150mm

    8.6

    HYP-7

    20-325

    720×1220mm

    5.6

    HYP-8

    20-250

    700×1165mm

    4.6

    HYP-9

    20-250

    1186×1280mm

    9.2
