  • Steel Frame Screens

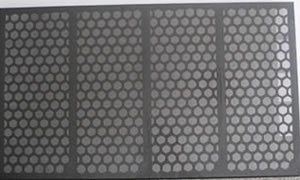

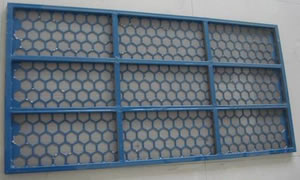

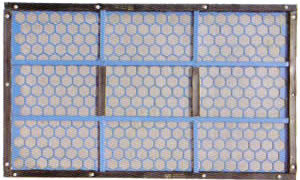

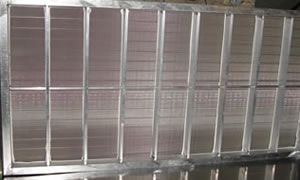

    Steel frame screens are mostly applied to the shale shakers with wedge fastening equipment. The screen frames adopt that high-strength square steel tube welded to multi-ribbed construction. They are sturdy and reliable. These screens are constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be used to repair rips or tears. By doing this, we can cut down time and reduce the production costs. We can supply steel frame screens with mesh sizes ranging from 20 to 250.

    Screen Model

    Pange of Mesh

    Dimension (Length x Width)

    Weight(Kg)

    HYK-1

    20-325

    585×1165mm

    12

    HYK-2

    20-325

    635×1253mm

    13.5

    HYK-3

    20-325

    913×650mm

    12.5

    HYK-4

    20-325

    720×1220mm

    17

    HYK-5

    20-325

    712×1180mm

    17
